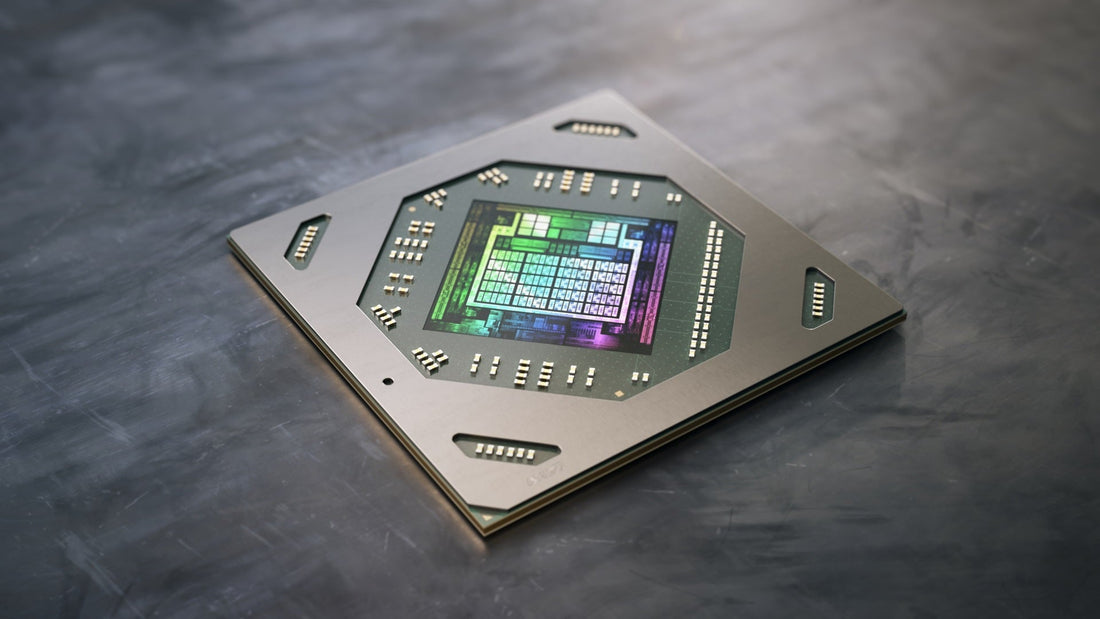

Exploring AMD’s RDNA 2 GPU Architecture

Exploring AMD’s RDNA 2 GPU Architecture: Power, Performance, and Efficiency

AMD’s RDNA 2 GPU architecture marked a pivotal moment in the company’s graphics technology evolution. Introduced in 2020, RDNA 2 succeeded the original RDNA (Radeon DNA) architecture and brought with it significant enhancements in gaming performance, power efficiency, and graphical features. RDNA 2 wasn’t just an iterative improvement—it was a foundational leap that enabled AMD to compete head-to-head with NVIDIA’s offerings in the high-end GPU market, while also powering the next generation of consoles like the PlayStation 5 and Xbox Series X|S.

A Leap in Architecture

RDNA 2, codenamed "Navi 2x," is built on TSMC’s 7nm process and serves as the heart of AMD’s Radeon RX 6000 series GPUs. One of the defining features of RDNA 2 is its substantial architectural overhaul that focuses on higher instructions per clock (IPC), better performance-per-watt, and support for cutting-edge gaming technologies.

Compared to RDNA, RDNA 2 delivers up to a 54% performance-per-watt improvement. This leap is achieved through several changes: a redesigned compute unit (CU), a new cache hierarchy, and smarter power management techniques. These optimizations allowed AMD to increase clock speeds while maintaining energy efficiency, giving gamers and developers more performance headroom.

The Return of Infinity Cache

One of the standout features of RDNA 2 is the introduction of Infinity Cache, a high-density, low-latency cache memory that dramatically boosts bandwidth without requiring a wider memory bus. With 128MB of Infinity Cache available on GPUs like the RX 6800 XT and RX 6900 XT, AMD was able to achieve effective bandwidth up to 3.25x higher than what would be expected from a 256-bit GDDR6 memory interface alone.

Infinity Cache reduces the need to access slower GDDR6 memory, thereby improving overall performance and efficiency. In memory-bound scenarios such as high-resolution gaming (1440p and 4K), Infinity Cache plays a crucial role in keeping frame rates high and latency low.

DirectX 12 Ultimate and Ray Tracing

With RDNA 2, AMD introduced real-time hardware-accelerated ray tracing to its GPUs for the first time, putting them in line with NVIDIA’s RTX offerings. Each compute unit in RDNA 2 includes a dedicated Ray Accelerator, which allows for efficient bounding volume hierarchy (BVH) traversal and ray-box/ray-triangle intersection calculations.

These ray accelerators enable games to feature realistic lighting, shadows, and reflections. While first-generation ray tracing performance on RDNA 2 lags slightly behind NVIDIA’s more mature implementations, the support for ray tracing APIs like DirectX Raytracing (DXR) and Vulkan RT laid the groundwork for broader adoption and future improvements.

In addition to ray tracing, RDNA 2 fully supports the DirectX 12 Ultimate suite, including features like Variable Rate Shading (VRS), Mesh Shaders, and Sampler Feedback. These technologies allow for more efficient rendering and more immersive game worlds.

Smart Access Memory (SAM)

AMD further leveraged its platform ecosystem with Smart Access Memory, a feature enabled when pairing a Ryzen 3000/5000-series CPU with a Radeon RX 6000-series GPU and a compatible 500-series motherboard. SAM utilizes the Resizable BAR (Base Address Register) feature of PCIe to give the CPU full access to the GPU’s VRAM, improving data transfer efficiency and enabling modest performance gains in certain games.

While Resizable BAR is a standardized feature now adopted across platforms (including NVIDIA GPUs), AMD’s early adoption and marketing of SAM highlighted the benefits of platform synergy and vertical integration.

Console and Custom Silicon

RDNA 2’s impact wasn’t limited to discrete desktop GPUs. The architecture also powers the graphics subsystems of the PlayStation 5 and Xbox Series X|S consoles. This marked the first time that both Sony and Microsoft based their consoles on the same graphics architecture, giving game developers a unified target and helping accelerate the adoption of RDNA 2 features across platforms.

In the console space, RDNA 2’s efficiency and scalability were key. Despite differing implementations between Sony and Microsoft, both platforms benefited from the architecture’s power-saving design, ray tracing support, and advanced rendering capabilities.

Real-World Gaming Performance

AMD’s Radeon RX 6000-series GPUs, particularly the RX 6800, RX 6800 XT, and RX 6900 XT, delivered compelling competition to NVIDIA’s RTX 30-series. At 1440p and 4K resolutions, RDNA 2-based cards often trade blows with NVIDIA counterparts like the RTX 3070, RTX 3080, and even the RTX 3090 in rasterization performance.

While NVIDIA maintained a lead in ray tracing and DLSS (Deep Learning Super Sampling) performance, AMD introduced its own upscaling solution—FidelityFX Super Resolution (FSR). Unlike DLSS, FSR is a spatial upscaler that doesn’t rely on machine learning or require dedicated hardware, making it more widely compatible. While early versions of FSR couldn’t match the quality of DLSS, they offered a significant performance uplift with minimal visual compromise. FSR 2.0 and later versions have improved image quality considerably.

Software Ecosystem and Features

AMD continued to enhance its Radeon Software Adrenalin Edition with RDNA 2. The suite offers features like Radeon Boost, which dynamically lowers rendering resolution during fast motion to improve frame rates, and Radeon Anti-Lag, which reduces input latency—a critical feature for competitive gamers.

AMD’s driver support has historically been a mixed bag, but with RDNA 2, the company made significant strides in stability and feature delivery. Frequent updates and performance optimizations helped keep RDNA 2 GPUs competitive and relevant throughout their lifecycle.

Efficiency and Thermals

RDNA 2’s architectural improvements also translated into improved thermal and acoustic profiles. While some models, especially custom AIB cards, could run hot under full load, most RDNA 2 GPUs maintained competitive power efficiency compared to NVIDIA’s Ampere-based cards.

Reference designs from AMD also saw an aesthetic overhaul, with triple-fan coolers and improved build quality that matched or exceeded the standards set by third-party designs.

Conclusion

RDNA 2 represented a major milestone for AMD in the GPU space. By delivering a competitive, power-efficient architecture with support for modern features like ray tracing, VRS, and a robust software stack, AMD reestablished itself as a legitimate high-end GPU contender. The architecture's inclusion in next-gen consoles further reinforced its importance and helped unify the gaming ecosystem.

While not without its limitations—particularly in early ray tracing performance and upscaling technology—RDNA 2 laid the groundwork for future generations. It also proved that AMD could innovate and compete not only on price but on performance and feature parity. With the launch of RDNA 3 in late 2022, AMD continues to build on the strong foundation that RDNA 2 set, cementing its role in the future of gaming and graphics processing.
